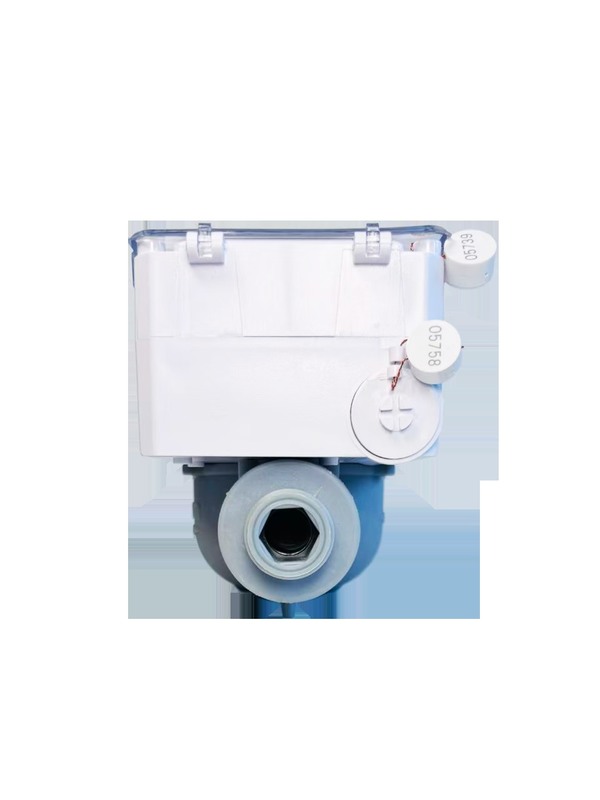

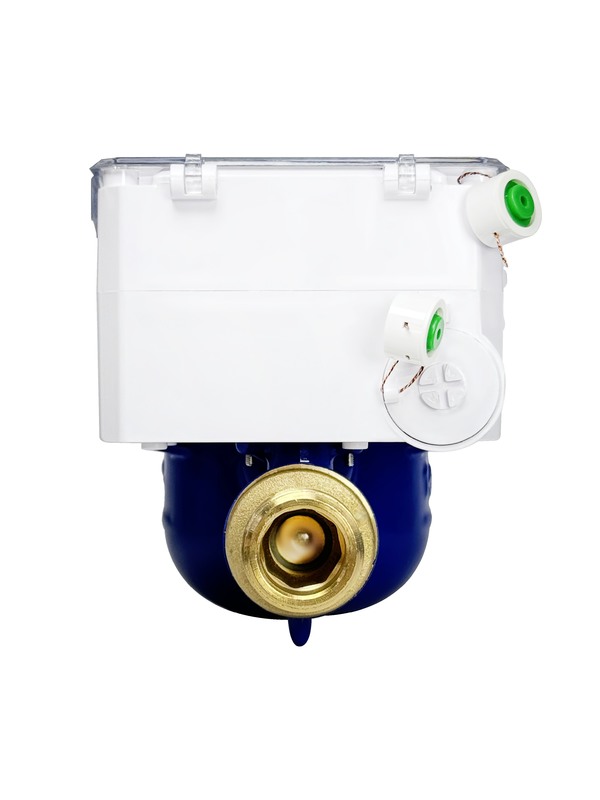

STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life

STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life

Class C Accuracy Prepaid Water Meter

16MPA Water Pressure Smart Water Meter

8 Years Battery Life STS Water Meter

Plaats van herkomst:

Hunan, China

Merknaam:

Stron

Certificering:

STS Certificate,ISO9001,ISO14001

Neem contact met ons op
Vraag een offerte
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life
Productgegevens
Beschermingsklasse:
IP68
Stroomsnelheid:
01
Meetbereik:
0.1-1
Batterij levensduur:
8 jaar
Type weergave:
LCD
Nauwkeurigheidsklasse:
Klasse C
Waterdruk:
16MPa
Laadmodus:
De Steunen van de stapprijs
Anti-tamperbescherming:
Bescherming van magnetische veld
Maximale werkdruk:
16Bar
Maximaal drukverlies:
00,6 bar
Maximale temperatuur:
50℃
Foutbereik Q1-Q2:
5%
Foutbereik Q2-Q4:
2%
Communicatie -interface:
LORA RF of Bluetooth 4.0
Markeren:

Class C Accuracy Prepaid Water Meter

,

16MPA Water Pressure Smart Water Meter

,

8 Years Battery Life STS Water Meter

Betalings- en verzendvoorwaarden
Min. bestelaantal
100
Gerelateerde producten
Goede prijs. STS Smart Water Meter with 84 Flow Rate Mobile Payment Integration and LoRa-RF Communication online

STS Smart Water Meter with 84 Flow Rate Mobile Payment Integration and LoRa-RF Communication

Vind de beste prijs
Goede prijs. STS Standard Prepaid Water Meter with 2.5/4/6.3 m³/h Flow Rate 99999m³ Measurement Range and 2 Years Warranty online

STS Standard Prepaid Water Meter with 2.5/4/6.3 m³/h Flow Rate 99999m³ Measurement Range and 2 Years Warranty

Vind de beste prijs
Goede prijs. STS Integrated Keypad Split Smart Water Meter with 1km Measurement Range 84 Flow Rate and Free Vending Software online

STS Integrated Keypad Split Smart Water Meter with 1km Measurement Range 84 Flow Rate and Free Vending Software

Vind de beste prijs
Goede prijs. Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication online

Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication

Vind de beste prijs
Neem contact met ons op
86-0731-22421066
Contact opnemen
Productbeschrijving
DN15/DN20/DN25 STS Prepaid Smart Wireless RF Lora Split Keypad IP68 Protection Water Meter
The STS standard prepaid water meter features token-based recharge with 20-digit codes. Built with IP68 waterproof protection for harsh environments, its Multi-Jet construction ensures reliable operation even in muddy water without clogging. With low pressure loss (<0.06Mpa) and maintained accuracy beyond 10 years of service.
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 0 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 1 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 2
Available Models

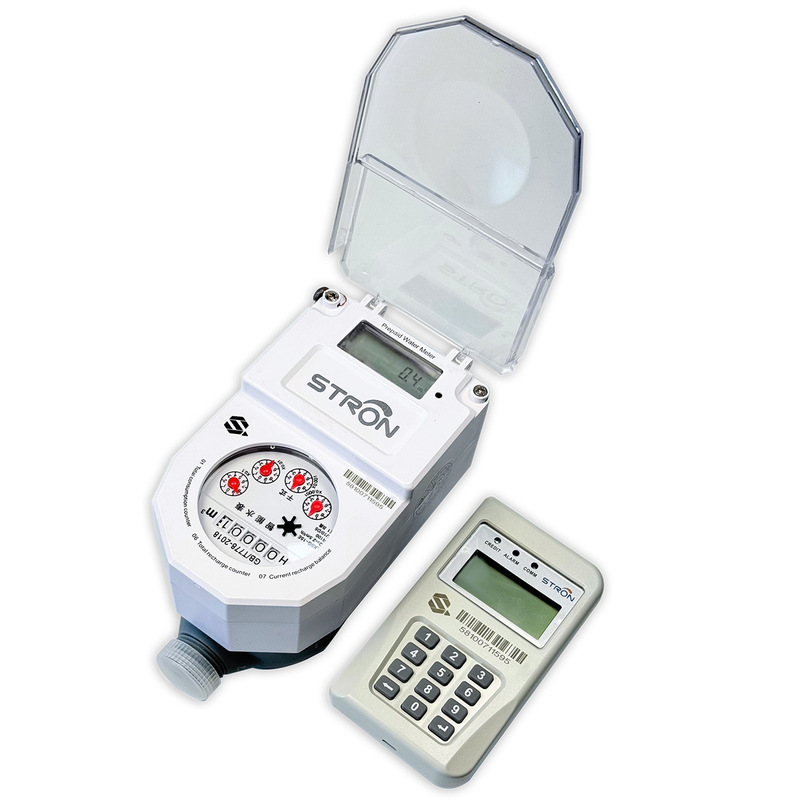

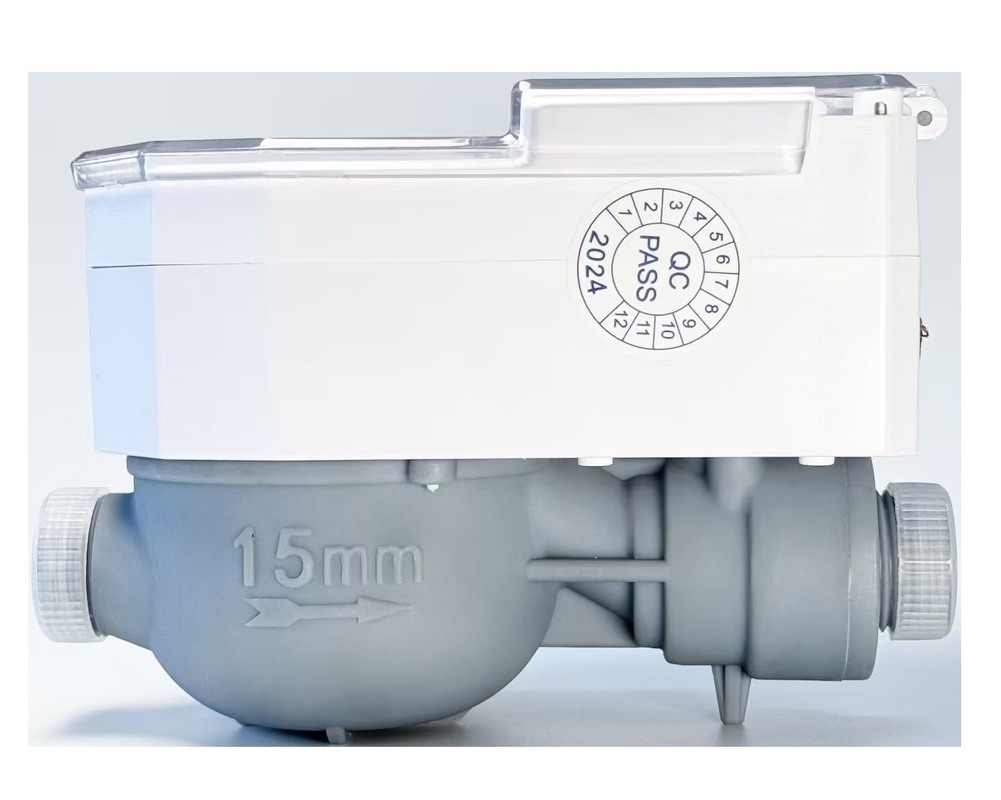

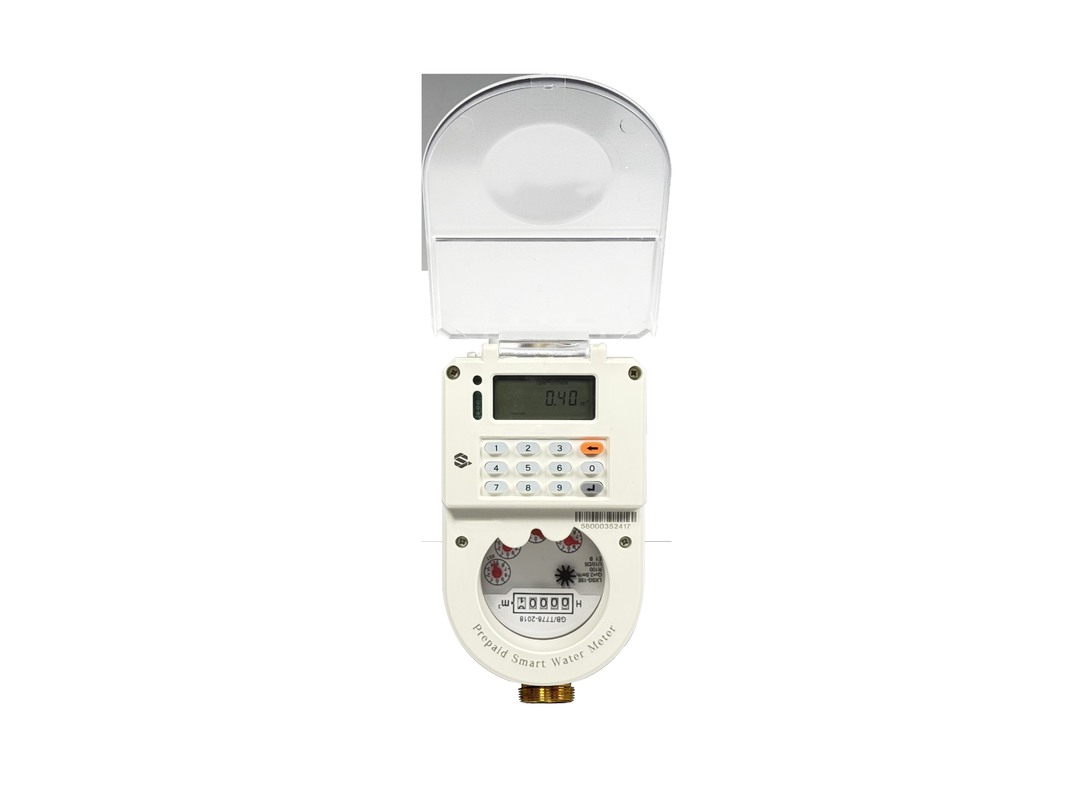

Prepaid Keypad Type Plastic Water Meter
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 3 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 4

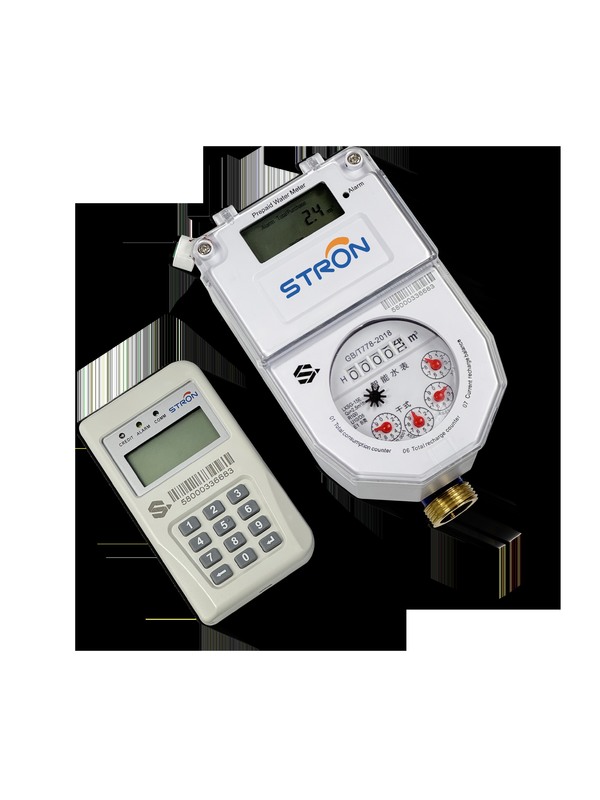

Prepaid Keypad Type Brass Water Meter
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 5 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 6
Prepaid Split Keypad Type Brass Water Meter+CIU
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 7 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 8
Technical Specifications
Function Details
Prepayment STS Standard, recharge by input 20-digit TOKEN
Low credit alarm Alarm value can be set via TOKEN input
Prepaid/post-paid switch Convertible between prepaid and post-paid modes
Non-return valve Integrated back-flow prevention
Anti-tamper Automatic valve closure upon magnetic field or cover opening detection
Step Tariff Configurable via TOKEN input
Overdraft Collection Non-revenue water collection (daily/monthly)
Communication Compatible with AMI systems via LORA RF or Bluetooth 4.0 (optional)
Information Inquiry Users can check credit, purchase history via short codes
Metrological Parameters
Size Specifications
DN15mm (1/2") DN20mm (3/4") DN25mm (1")
Overload flow rate Q4 3.13 5 7.875
Permanent flow rate Q3 2.5 4 6.3
Transitional flow rate Q2 0.04 0.064 0.1
Minimum flow rate Q1 0.025 0.04 0.063
Ratio "R" Q3/Q1 100 100 100
Maximum working pressure 16Bar 16Bar 16Bar
Maximum pressure loss 0.6Bar 0.6Bar 0.6Bar
Maximum reading 99999 99999 99999
Max temperature 50℃ 50℃ 50℃
Error Q1≦Q≦Q2 5% 5% 5%
Error Q2≦Q≦Q4 2% 2% 2%
Vending Process
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 9 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 10
  1. Login vending system
  2. Meter number registration
  3. Customer information registration
  4. Price Setting
  5. Open Account
  6. Vending/Topping up meters
  7. Get the Token
  8. Input Token to meter with keypad
  9. Recharging successfully
Vending Options
Option 1: Local Sales Point
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 11
Option 2: Third-party Integration
API integration enables mobile payment and billing system connectivity
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 12
Manufacturer Profile
Hunan Stron Smart Co., Ltd
Founded in 2007, Stron is a leading Chinese smart meter manufacturer with 500 employees including 100 technical engineers. The company serves clients in over 60 countries worldwide.
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 13 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 14
Certifications
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 15 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 16
